STAT-Site® WB

Glucose and β-ketone measurement

Pebble

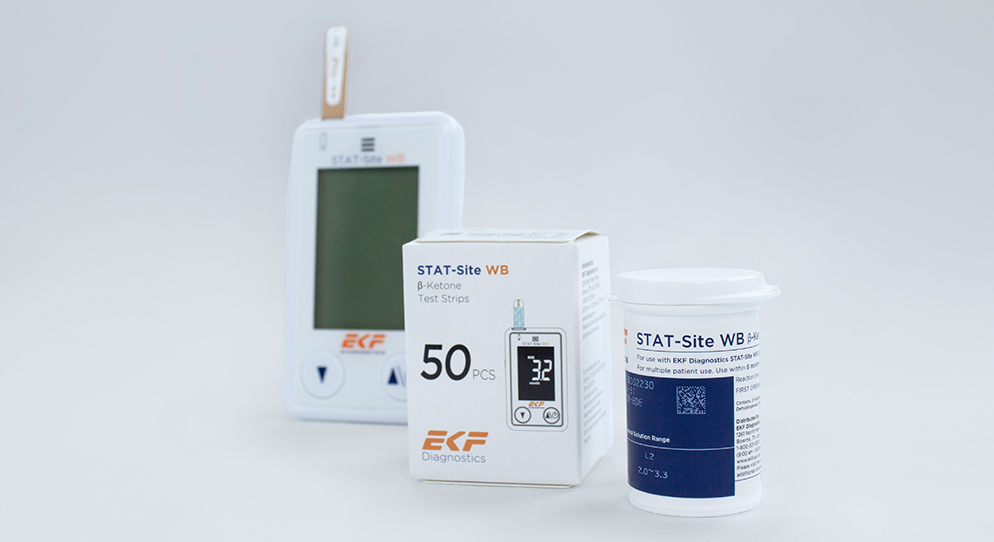

The STAT-Site® WB analyzer from EKF Diagnostics is used to quantitatively determine β-ketones (Beta-Hydroxybutyrate or β-HB) and glucose in whole blood taken from capillary or venous samples.

β-HB is used to aid the diagnosis and monitoring of patients with ketosis (also known as ketoacidosis and diabetic ketoacidosis or DKA). Ketosis occurs when the body begins to break down its stored fats in response to a low supply of energy (glucose). This process produces the ketone β-HB, which is further catabolized into acetoacetate and then into acetone.

As metabolic decompensation progresses, the concentrations of the ketones changes with β-HB accounting for 78% of all ketones in the body. This dynamic shift is why β-HB  is the most useful biochemical parameter for indicating patient’s condition before and after treatment. For this reason, it is a more appropriate test than traditional nitroprusside tests for acetoacetate and acetone.

The STAT-Site® WB meter uses two different strips to provide results in just ten seconds for β-ketones and five seconds for glucose allowing for clear and comprehensive management of diabetes patients displaying early symptoms of ketosis to be quickly treated and then monitored on a regular basis.

Reliable and efficient β-ketone and glucose measurement from whole blood

Key features:

  • CLIA waived.
  • Results in just 5-10 seconds
  • Handheld meter
  • Multi-patient use with Automatic strip ejection
  • Accurate results comparable to lab analyzers.
  • Easy to use
Contact our specialists

Easy glucose and β-ketone measurement in three steps:

1
numbered_image_image.alt

Insert test strip into the meter

2
numbered_image_image.alt

Add blood sample


3
numbered_image_image.alt

Result within 10 seconds for β-ketone, and 5 seconds for glucose

Frequently Asked Questions:

How to apply specimen from tube draw, when not using fingerstick?
Is this product CLIA-waived?

Accurate results with an excellent linear range

  • Measurement range: β-ketone: 0.1 to 8.0 mmol/L
  • Blood glucose: 10 to 600 mg/dL (0.5 to 33.3 mmol/L)
  • Hematocrit range: β-ketone: 10 to 70%
  • Blood glucose: 20 to 70%

Fast and efficient sample handling

  • 1 μL sample size capillary or venous whole blood
  • β-ketone results in 10 seconds
  • Glucose results in 5 seconds

Simple and Intuitive

  • Auto start when the strip is inserted
  • Auto reaction time countdown
  • Auto switch-off after 3 minutes without action
  • Touch button to eject test strip
  • Two 1.5V AAA alkaline batteries
  • 400 results stored on the system

Ergonomic design

  • Compact: 95.5 (l) x 57 (w) x 15 (h) mm, 58g
  • Simple, large LCD screen interface
STAT-Site®: Datasheet
Download
