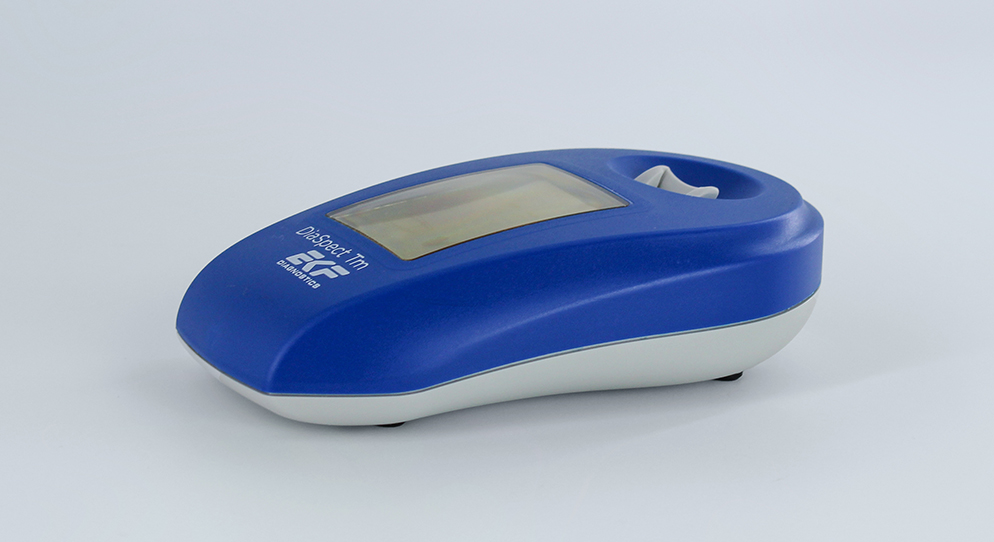

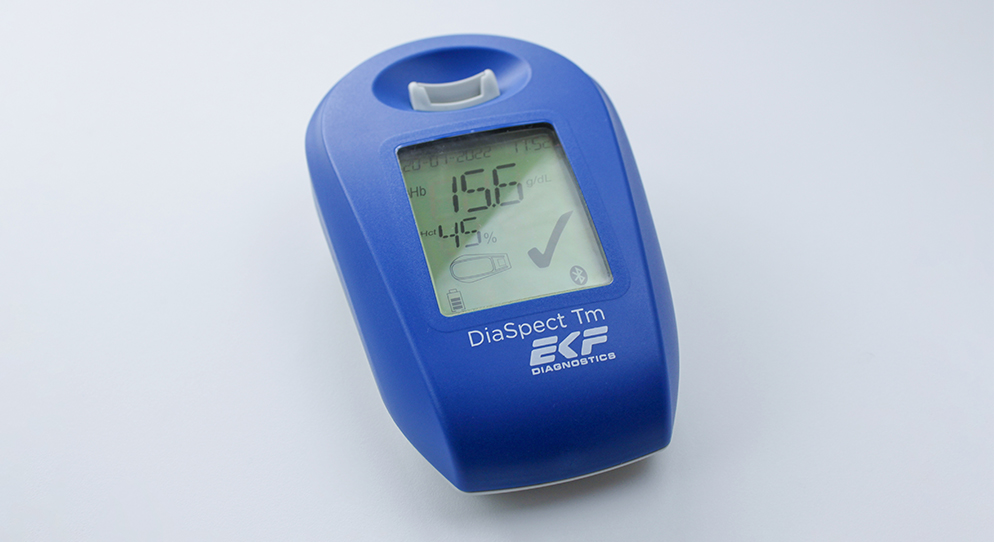

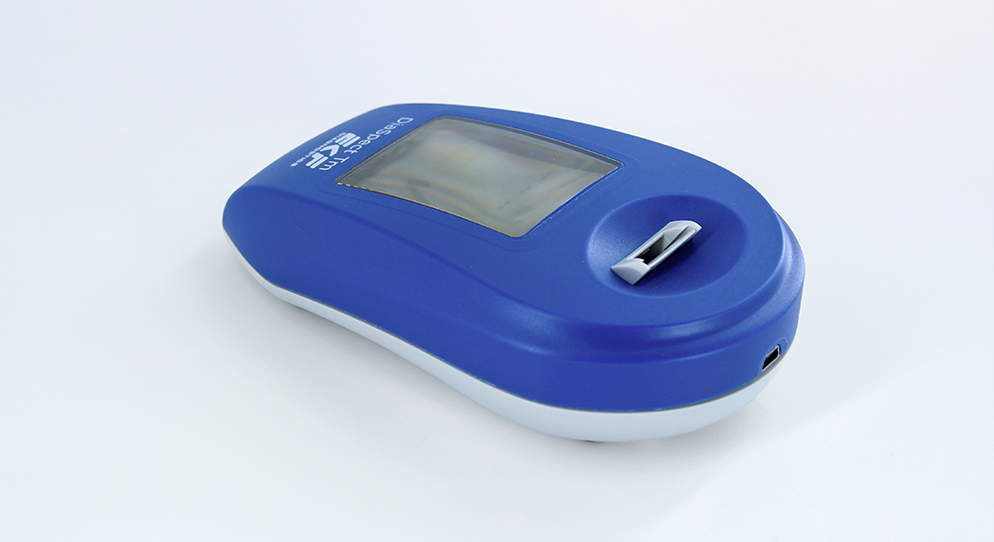

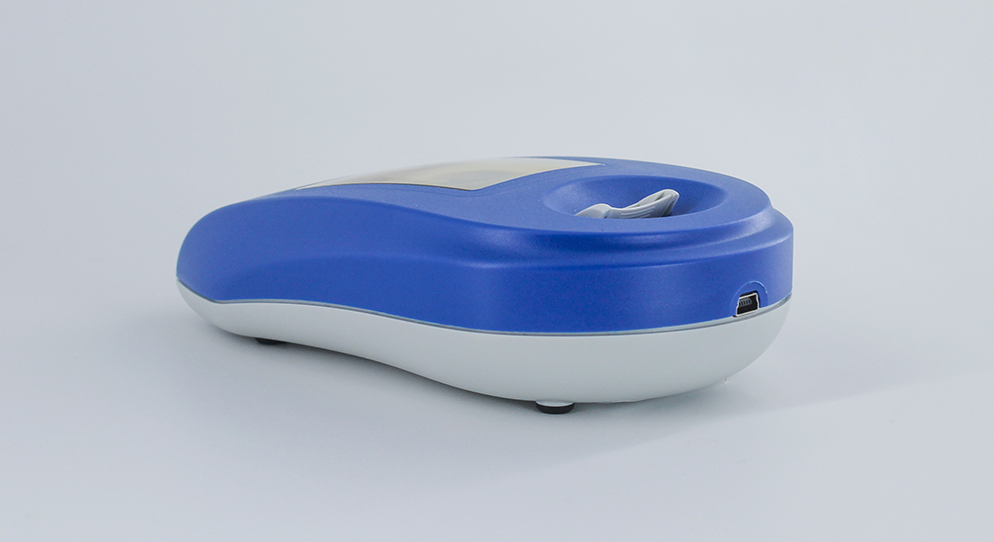

DiaSpect Tm

Hand-held hemoglobin analyzer

Pebble
DiaSpect Tm is now powered by EKF Link, which enables a paperless workflow and streamlined quality control management. This allows operators to focus on the patients and donors they serve instead of the analyzer in use. EKF Link enables new functions like Hematocrit calculation, quality control management, and patient data management.

DiaSpect Tm’s proven technology delivers laboratory-quality results within one second and transfers the test result data via Bluetooth or wired connection to EKF Link in real time.

The hemoglobin analyzer is palm-sized, making it easily transportable, and ideal for use in any blood screening setting, even in challenging climatic and remote environments.

DiaSpect’s ‘always-on’ technology means that professionals can start using the device immediately. The rechargeable internal battery, which provides up to 40 days / 10,000 tests of continuous use, allows for weeks without a power source.

The microcuvettes have a shelf life of up to two and a half years and can be used until the expiration date, even after opening the bag. Together with a 60-day shelf-life of QC material at 2°C to 35°C, all of the DiaSpect Tm accessoires are designed to ensure an uninterrupted workflow.

In addition, the air-release of the microcuvettes prevent the formation of air bubbles; this feature ensures that the need for repeating the testing procedure is minimized.

Immediate results from a hand-held hemoglobin analyzer

Key features:

  • Results in one second
  • ‘Always-On’ technology
  • Reagent-free microcuvettes
  • 40 days or 10,000 tests of continuous use
  • 30 months cuvette shelf life
  • QC reminder*
  • Middleware connection to EKF Link*
  • Bluetooth enabled*

*enabled via EKF Link

Contact our specialists

Easy hemoglobin measurement in three steps:

1
numbered_image_image.alt

Collect blood sample



2
numbered_image_image.alt

Insert the filled cuvette and press down gently. Remove the cuvette immediately after the first beep tone

3
numbered_image_image.alt

Results appear within one second


Frequently Asked Questions:

What measuring method is used?
What are the advantages of reagent-free cuvettes?
What connectivity packages are available?
Where is DiaSpect Tm manufactured?

Accurate results that enable rapid decisions

  • Results within one second
  • Measuring range: 0,5 – 25,5 g/dL
  • Precision: CV ≤ 1% for Hb ≥ 100 g/L, SD ≤ 0.1 g/dL for Hb < 100 g/L
  • Factory calibrated against HiCN reference method
  • Photometric method with broad spectrum and compensation for turbidity and scattering
  • No additional calibration required
  • CE marked

Robust technology that is practical and portable

  • Maintenance free
  • Sample volume: 10 μL
  • Capillary, venous blood (EDTA and heparin anticoagulant can be used)
  • Operating ambient temperature: 10 °C to 42 °C
  • Storage temperature: 0 °C to 50 °C / 32F to 122F (- 30 °C to 70 °C up to 24 hours maximum)
  • Integrated rechargeable lithium-ion battery (40 days / 10,000 tests of continuous use)
  • Compact: 150 (d) x 90 (w) x 40 mm (h)
  • Lightweight: 180g

'Always-on' whenever you need it

  • Connect to PC via USB 2.0 and Bluetooth®
  • ‘Always-on’ technology: DiaSpect Tm requires no start-up time and is always ready to use
  • Automatic self-check between every measurement and maintenance free
  • Long microcuvette shelf life: 30 months from date of production even after opening the bag

State-of-the-art connectivity powered by EKF Link

  • POC test results centralized in one place
  • Wireless connection via Bluetooth®
  • Add patient information to test results for more efficient data management
  • QC compliance through QC reminders, operator tracking and result retention
DiaSpect Tm: Datasheet (EN EU Rev 4.1 06-2022)
