Hemolysis QC

Precise free hemoglobin measurement of supernatant of RCC

Pebble
Hemolysis QC is essential for accurately measuring free hemoglobin in the supernatant of stored red blood cell concentrates. It helps assess hemolysis levels, ensuring the quality of blood banks and transfusion laboratories.

Hemolysis QC is essential for accurately measuring free hemoglobin in the supernatant of stored red blood cell concentrates. It helps assess hemolysis levels to support the quality assessment of stored red cell concentrates (RCC).

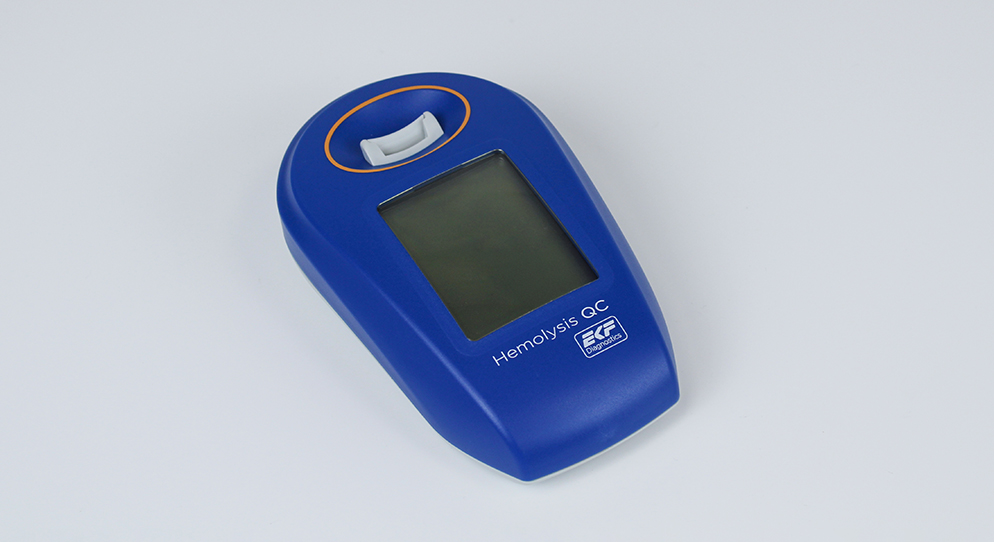

This compact, specially developed device delivers reliable results in just 1–2 seconds. It uses broad-spectrum photometric technology and compensates for stray light, ensuring high measurement accuracy.

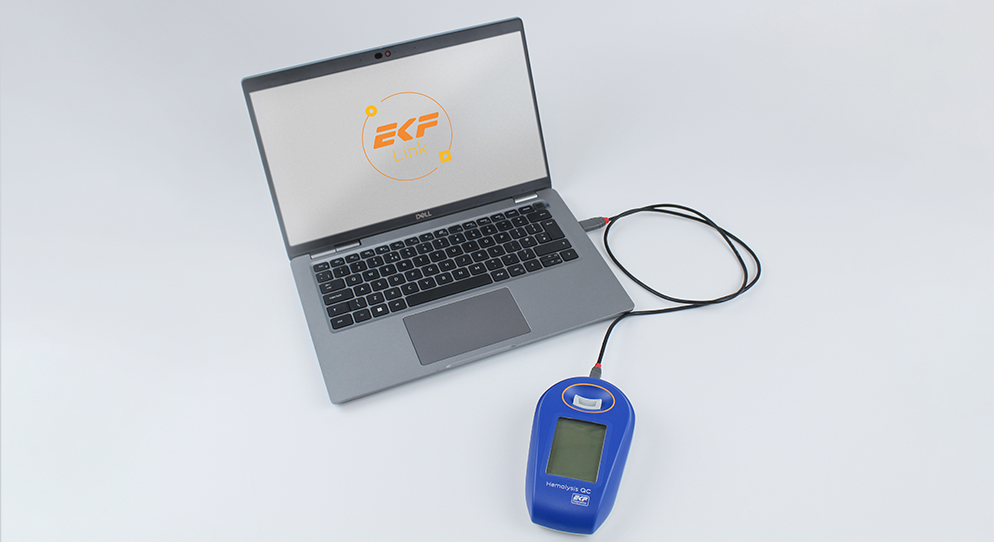

Results can be transferred directly from the Hemolysis QC to your PC or laboratory database using EKF Link, allowing seamless data integration.

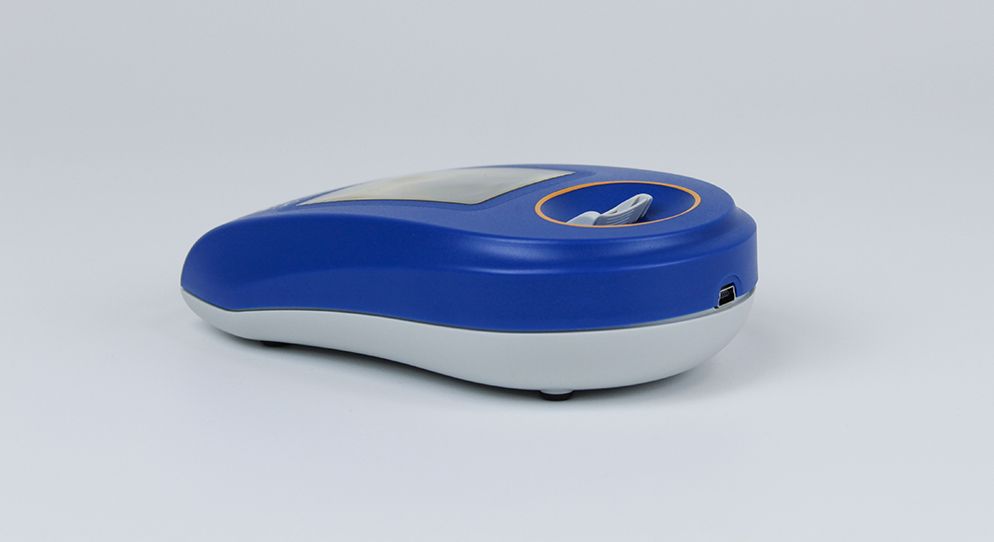

Hemolysis QC is maintenance-free and user-friendly. It operates via a power supply or USB connection and integrates easily into existing lab workflows.

The system provides a fast, precise, and practical solution for monitoring hemolysis in RCC, ideal for laboratories focused on quality and efficiency.

Please note: Not all products are available in all countries. Please check with EKF for availability.



This device is powered by EKF Link,
an optional software solution for healthcare providers,
centralizing data management for
point-of-care analyzers on one flexible platform.
Find out more at: EKF Link

Designed for quantitative determination of low levels of hemoglobin in stored red cell concentrates

Key features:

  • Test supernatant of stored red cell concentrate
  • Simplifies the estimation of the degree of hemolysis
  • Automatic self-check
  • Quick results
  • Reagent-free microcuvettes
  • Long microcuvette shelf life
Contact our specialists

Easy hemoglobin measurement in three steps:

1
numbered_image_image.alt

Collect sample



2
numbered_image_image.alt

2.Insert the filled cuvette and press down gently. Remove the cuvette quickly after "UP" appears on the screen.

3
numbered_image_image.alt

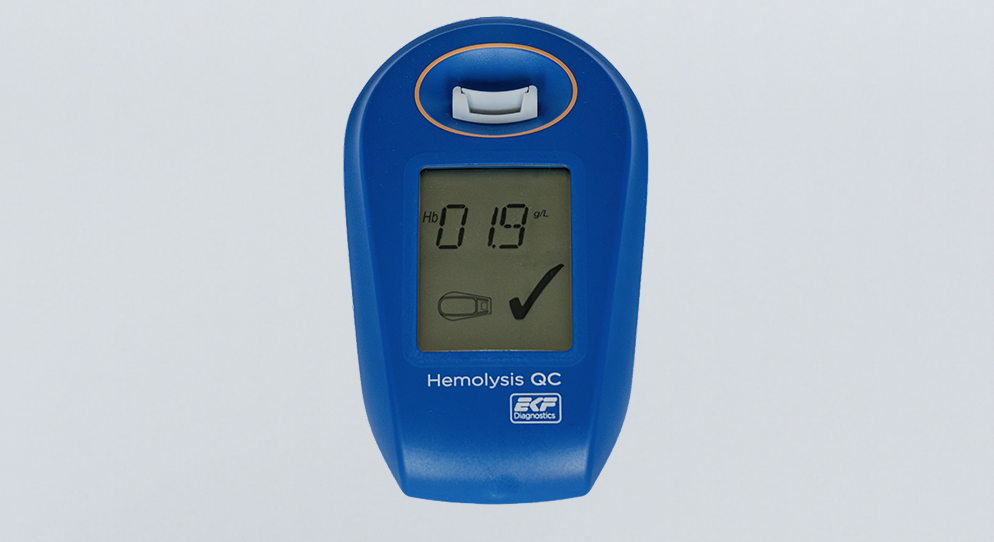

Result appears within a few seconds.


Frequently Asked Questions:

What does the Hemolysis QC measure?
How much sample is required?
How long does a measurement take?
What measuring method is used?
What is the measuring range?
Can results be stored on the Hemolysis QC?
Can the Hemolysis QC be connected to a printer, PC, network, LIS, LIMS or other device?
Does the analyzer require calibration?
What controls are available for use with the Hemolysis QC?
Is there a warranty period?

Fast and accurate

  • Results in one-two seconds
  • Linear measuring range: 0.3 – 30.0 g/L
  • Precision: CV: < 2 % for Hb . 5 g/L; SD: < 0.2 g/L for Hb < 5 g/L
  • Factory calibrated against HiCN reference method
  • Photometric, broad spectrum with compensation of scattering

Robust

  • Automatic self-check between every measurement and maintenance free
  • Two levels of liquid control are available
  • Long microcuvette shelf life: 30 months from date of production even after opening the bag

Practical

  • Sample volume: 20μL
  • Operating ambient temperature: 15 °C to 35 °C
  • Cuvette storage temperature: 2 °C to 50 °C
  • Operation by power supply or computer
  • Compact: 150 x 90 x 40 mm (d x w x h)
  • Lightweight: 135 g
  • Connect to PC via USB
Hemolysis QC: Datasheet (EN EU Rev 1.0 05-2025)
Download
Hemolysis QC: FAQs (EN EU Rev 1.0 06-2025)
Download

Connectivity at the point-of-care

EKF Link is an optional software platform that provides a flexible and secure method for connecting point-of-care devices to hospital and laboratory IT systems.

Real-time data and device management on one platform

EKF Link is a middleware solution that helps healthcare providers manage their point-of-care analyzers and associated data on one platform. A flexible and open solution that can be interfaced with most point-of-care analyzers, allowing real-time data management, including patient test results, QC results, operator management, and analyzer configuration.
